Description
The French gift to heavy-duty riders! Aivee hubs are manufactured with aerospace-grade precision. The Gravity ONE lineup is aimed for gravity-focused riding, and carries a stamp of approval for EMTB use.

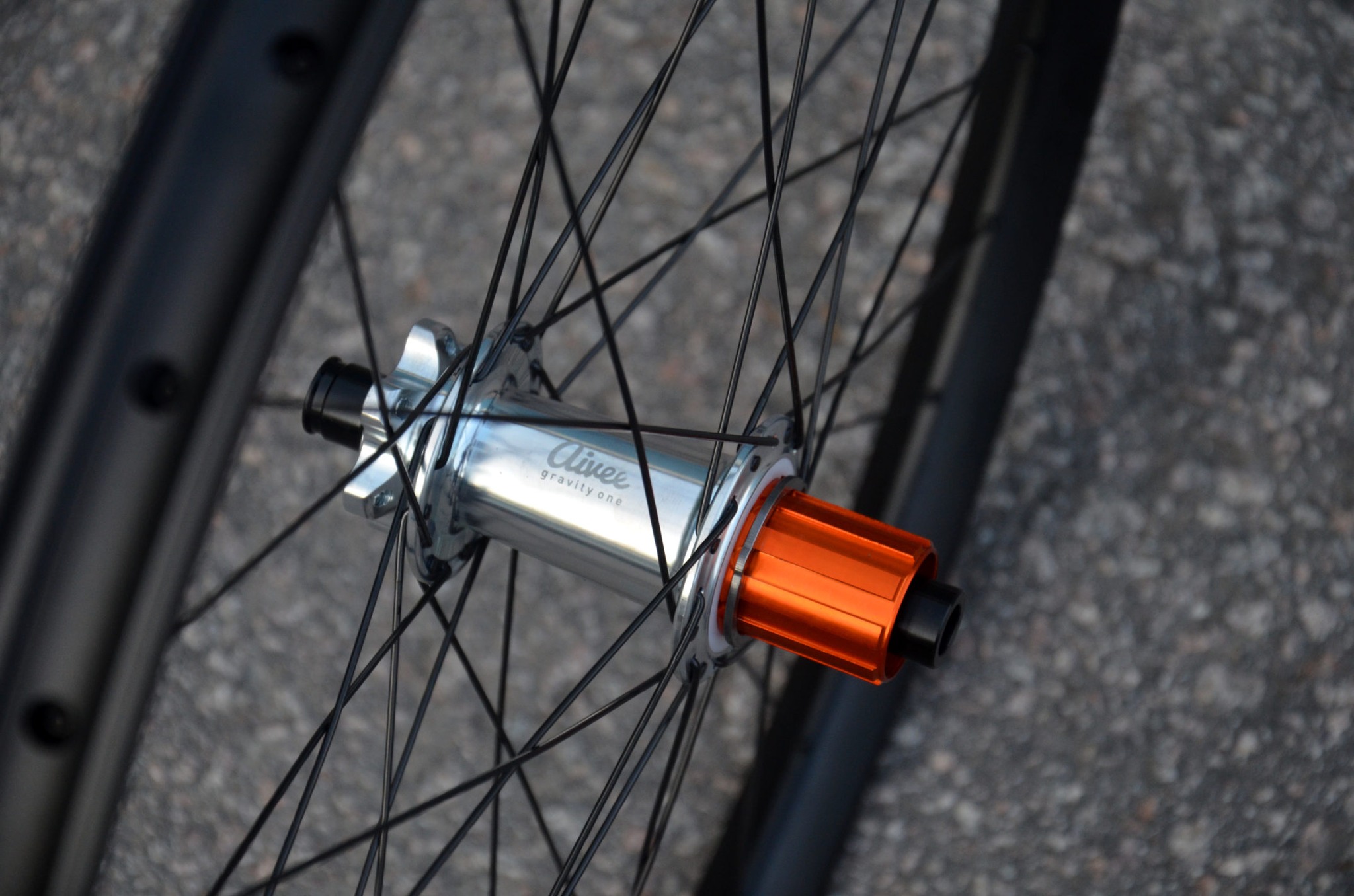

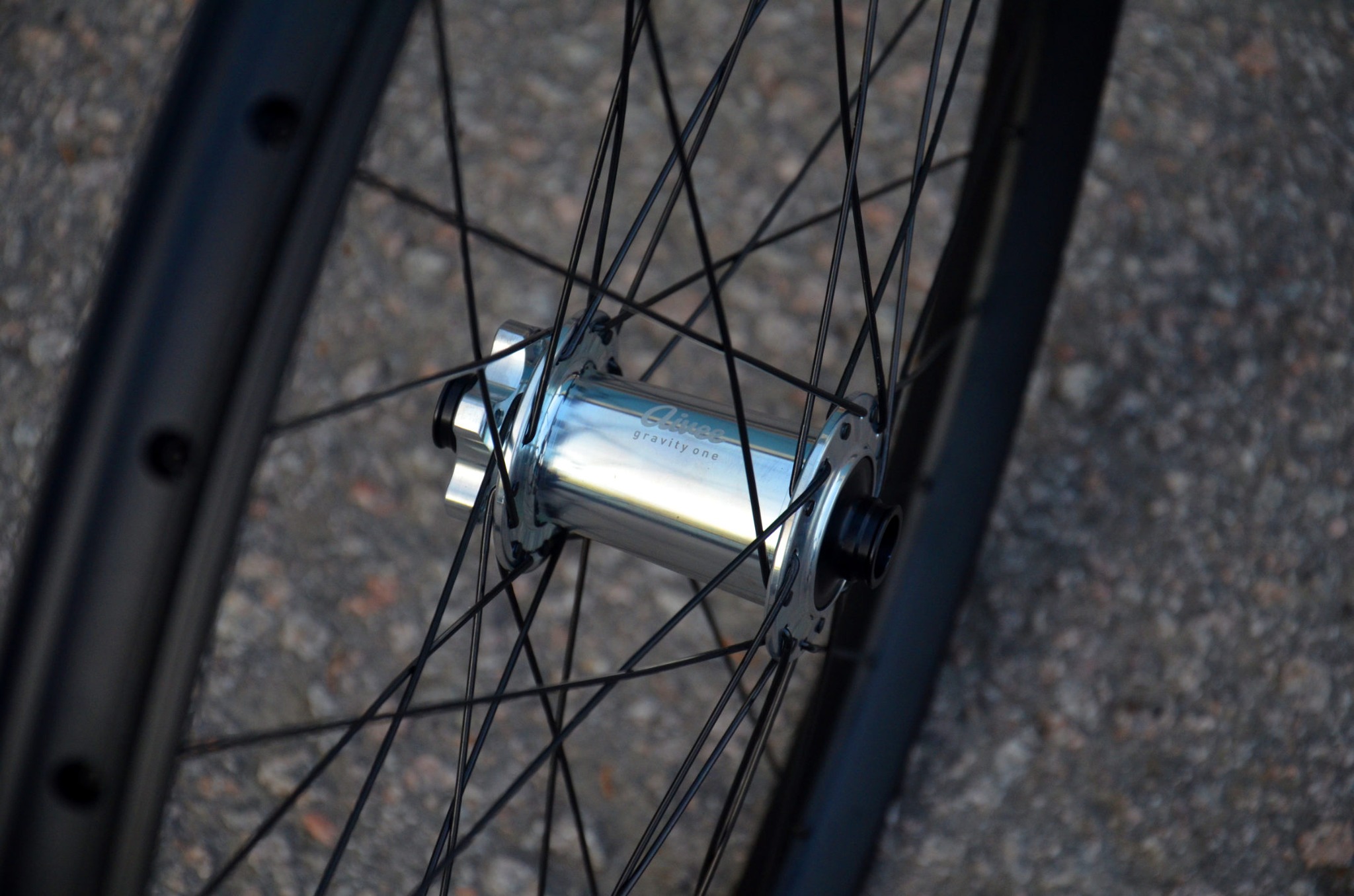

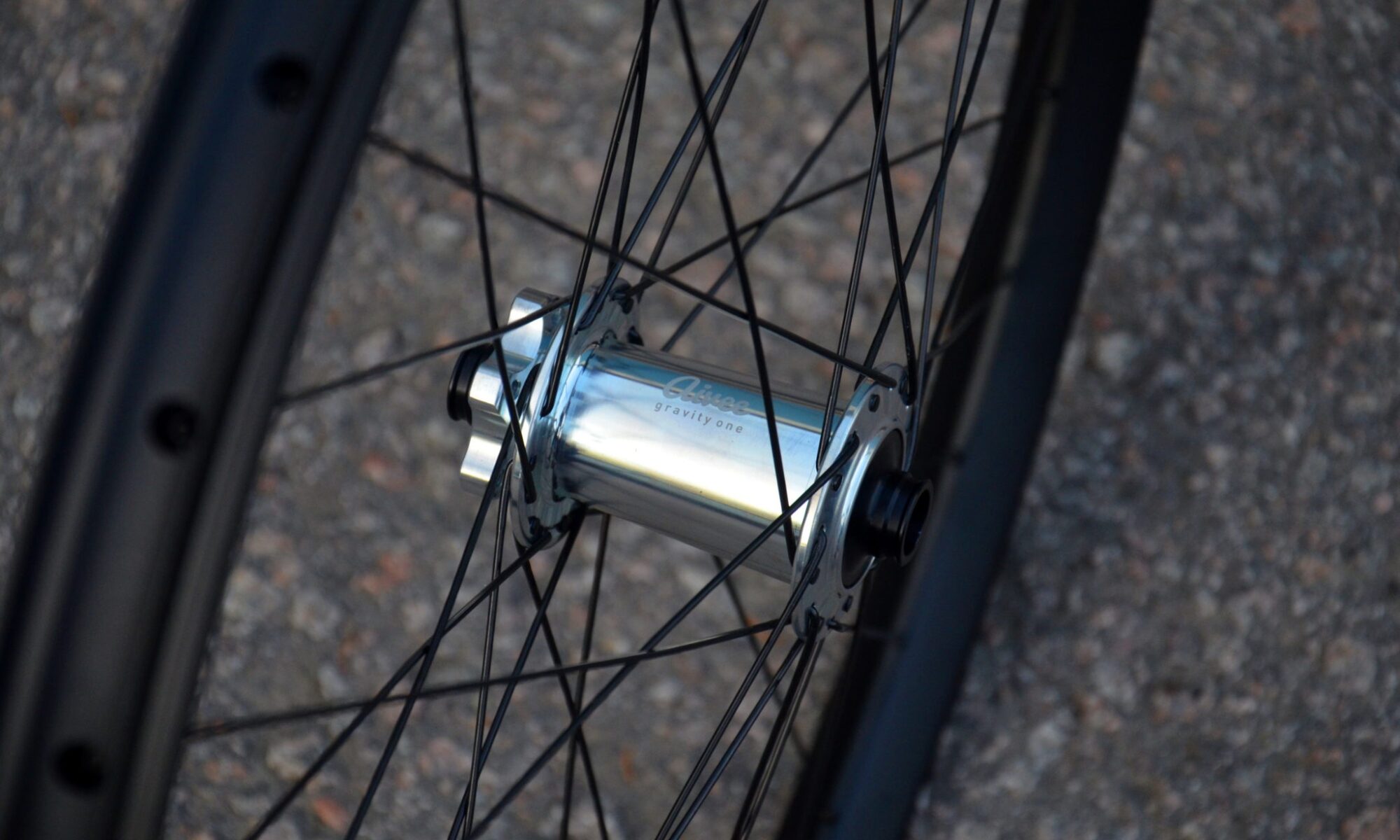

Hub Specs
- Super Boost spacing: 110x15mm front / 157x12mm rear.
- Front hub is also availabe with 20mm Boost front axle. If you want to purchase the wheels in this configuration, please get in touch by email at info@wheelfab.com.
- 32H spoke hole count, 6-bolt disc rotor mounts.
- Ratchet-style freehub mechanism with a 44 POE number.
- Innovative rear hub design with a large diameter 61706 freehub driver body support bearing.
- Multiple color options.
- HG freehub driver bodies are available in chromoly version.
- Easy-to-service design.
Rims
Wheels are offered with a variety of rim options to suit the intended application, including differing internal widths, and rim materials. See the continually updated rim choice page by clicking the link below to find the right match for your needs.
Spokes & Nipples
Wheels are built with double-butted Sapim Race spokes that employ a 2.0/1.8/2.0mm profile. The Race spokes are the default spoke choice for multiple reasons.
- Excellent strength-to-weight ratio.
- Better fatigue-resistance properties than straight gauge 2.0mm spokes.
- Excellent value, and availability.
Race spokes are mated with with black-coloured Sapim Polyax Double Square nipples. Brass nipples are used exclusively in builds because of their reliability, low to zero maintenance needs, corrosion resistance and strength. Reliability, and function are further enhanced by using the Secure-Lock version of the said nipples, or by adding a mild adhesive compound with traditional nipples.
Build
Unless otherwise specified by the component manufacturer, all wheels are built with the following properties:
- 3-cross lacing pattern.
- Thorough stress-relieving process.
- Highest tension approved by the component manufacturer – usually 1200N.
- With a high degree of trueness, and roundness.
The whole build process is made by hand.
Lead Time
All wheels are built to order. Shipping takes place usually within 3-6 working days after the order has been placed.
Once finished, and shipped, the relevant tracking code will be forwarded by email.
