Octane One Orbital SS 32H Wheels

Description

Octane One is a brand dedicated to making top-notch components for dirt jump, and pumptrack use.

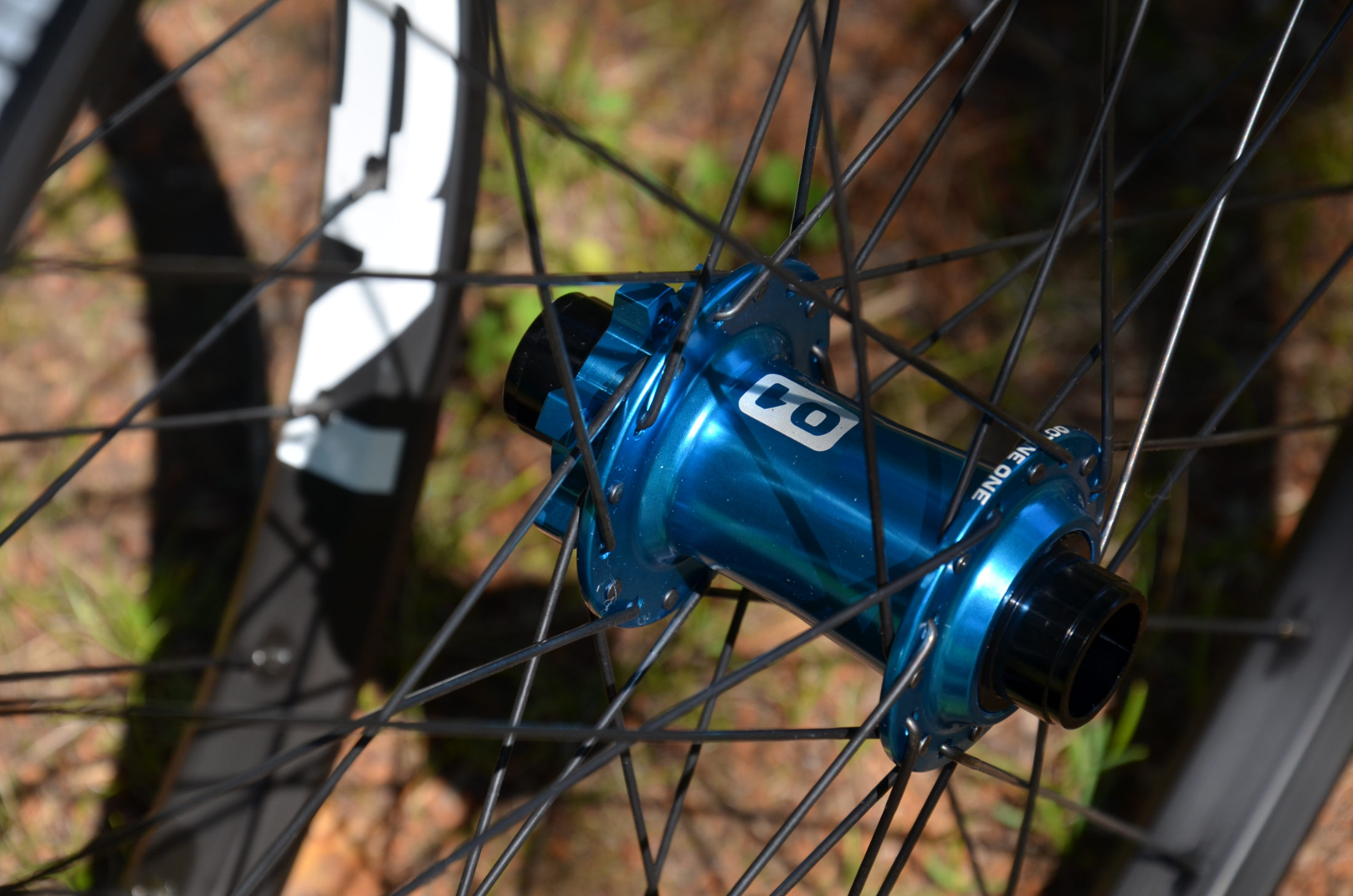

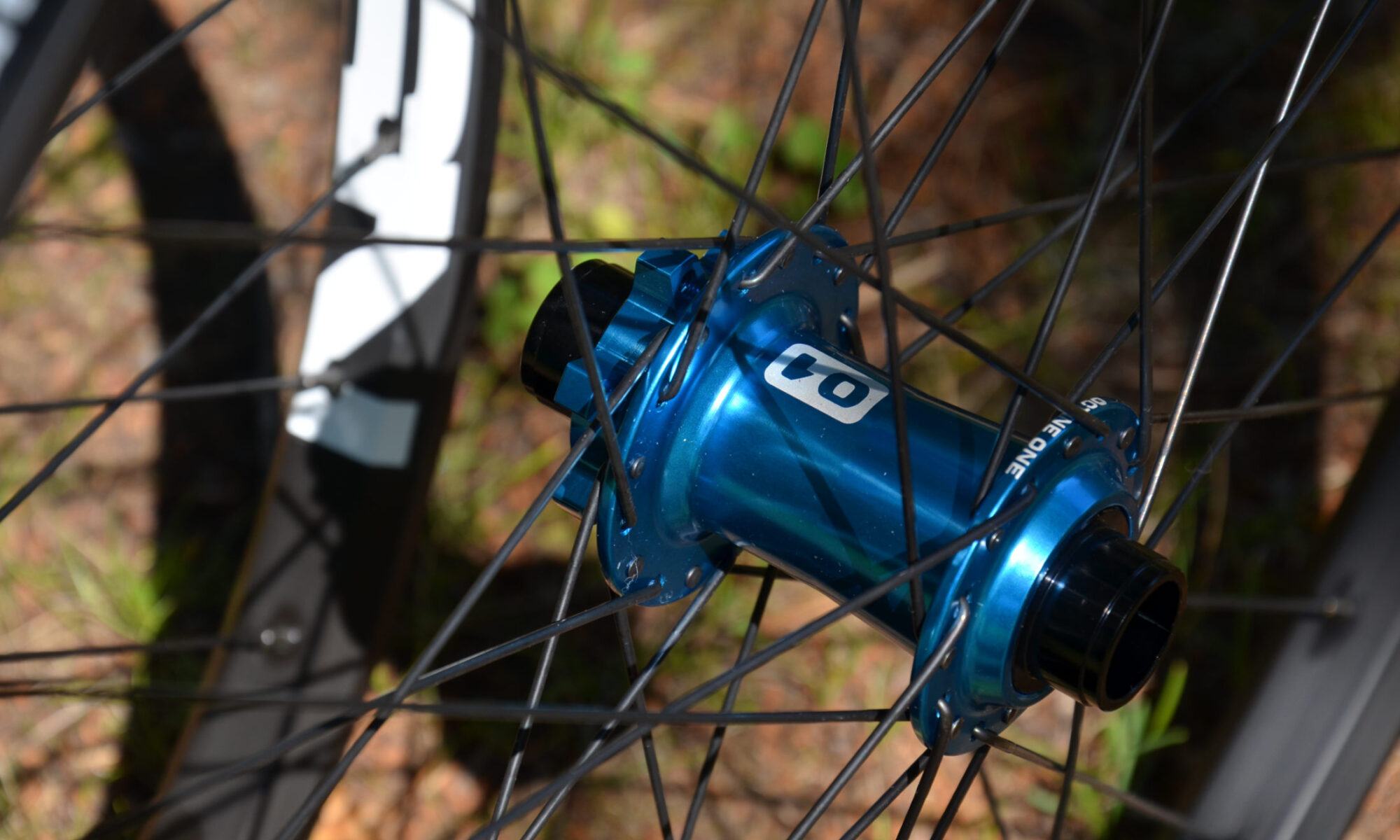

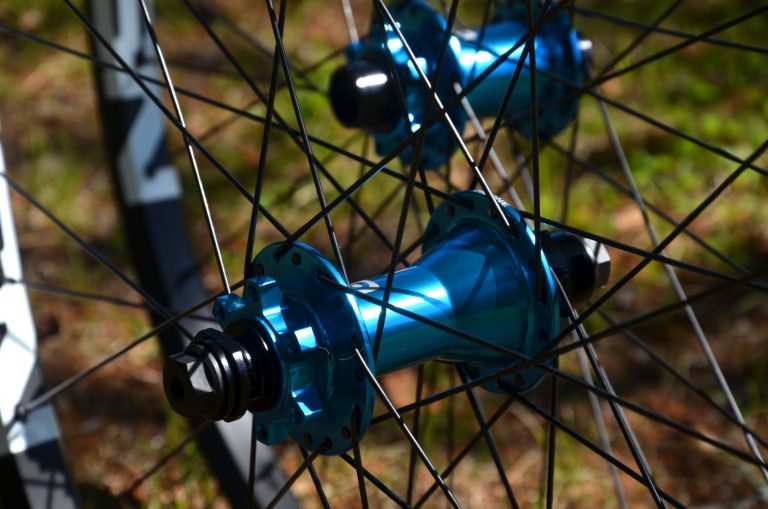

Hub Specs

• Octane One Orbital SS hubs.
• Standard MTB 110x20mm non-Boost spacing in the front,  135x10mm bolt-on in the rear.
• 32H spoke hole counts. 6-bolt rotor interface.
• Single-speed freehub driver body with a 10T cog.
• Reliable pawl-style freehub mechanism.

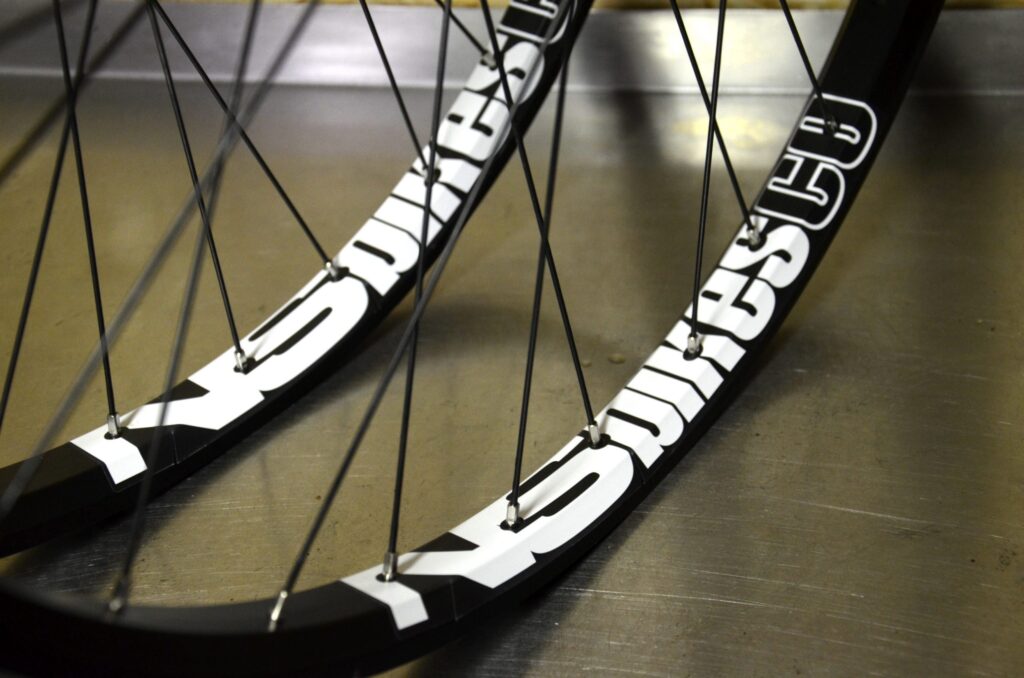

Rims

The wheels are built around NS bikes Fundamental 26″ rims.

Spokes & Nipples

Wheels are built with double-butted Sapim Race spokes that employ a 2.0/1.8/2.0mm profile. The Race spokes are the default spoke choice for multiple reasons.

• Excellent strength-to-weight ratio.
• Better fatigue-resistance properties than straight gauge 2.0mm spokes.
• Excellent value, and availability.

Race spokes are mated with with black-coloured Sapim Polyax Double Square nipples. Brass nipples are used exclusively in builds because of their reliability, low to zero maintenance needs, corrosion resistance and strength. Reliability, and function are further enhanced by using the Secure-Lock version of the said nipples, or by adding a mild adhesive compound with traditional nipples.

Build

Unless otherwise specified by the component manufacturer, all wheels are built with the following properties:

• Lacing pattern according to the hub specification.
• Thorough stress-relieving process.
• Highest tension approved by the component manufacturer – usually 1200N.
• With a high degree of trueness, and roundness.

The whole build process is made by hand.

Lead Time

All wheels are built to order. Shipping takes place usually within 3-6 working days after the order has been placed.

Once finished, and shipped, the relevant tracking code will be forwarded by email.
